螺紋 Thread |
編號(hào)
P/N
|

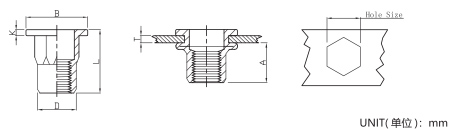

T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
| M3 | FH-IHB-0325 | 0.5-1.8 | 5.5 | 5.0 | 4.9 | 8.0 | 0.75 | 9.0 |
| M4 | FH-IHB-0420 | 0.5-2.0 | 7.0 | 6.0 | 5.9 | 9.0 | 0.8 | 11.0 |
| FH-IHB-0440 | 2.0-4.0 | 13.0 | ||||||
| M5 | FH-IHB-0525 | 0.5-2.5 | 7.5 | 7.0 | 6.9 | 10.0 | 1.0 | 12.0 |
| FH-IHB-0540 | 2.5-4.0 | 14.0 | ||||||
| M6 | FH-IHB-0630 | 0.5-3.0 | 9.2 | 9.0 | 8.9 | 12.7(*13.0) | 1.35 | 15.5 |
| FH-IHB-0650 | 3.0-5.0 | 19.5 | ||||||
| M8 | FH-IHB-0835 | 1.0-3.5 | 11.2 | 11.0 | 10.9 | 16.0 | 1.5 | 18.0 |
| FH-IHB-0855 | 3.5-5.5 | 21.0 | ||||||
| M10 | FH-IHB-1035(13H) | 1.0-3.5 | 12.8 | 13.0 | 12.9 | 18.0(*19.0) | 1.7 | 21.0 |
| FH-IHB-1060(13H) | 3.5-6.0 | 21.0 | ||||||
| M12 | FH-IHB-1250(16H) | 2.0-5.0 | 16.5 | 16.0 | 15.9 | 23.0 | 2.0 | 27.5 |
