螺紋
Thread
|
編號
P/N
|

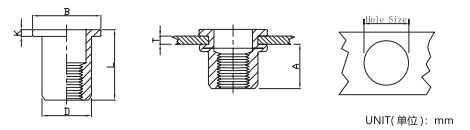

?T(GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B | K | L |
| M4 | FH-RB/AL-0420 | 0.5-2.0 | 6.0 | 6.0 | 5.9 | 8.8* | 0.8* | 10.5* |
| M5 | FH-RB/AL-0525 | 0.5-2.5 | 7.5 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 |
| M6 | FH-RB/AL-0625 | 0.5-2.5 | 9.2 | 9.0 | 8.9 | 12.3 | 1.5 | 15.0 |
| M8 | FH-RB/AL-0830 | 1.0-3.0 | 10.2 | 11 .0 | 10.9 | 14.3 | 1.5 | 16.5 |
| M10 | FH-RB/AL-1040 | 1.0-4.0 | 11.5 | 13.0 | 12.9 | 16.3 | 1.6 | 19.0 |
